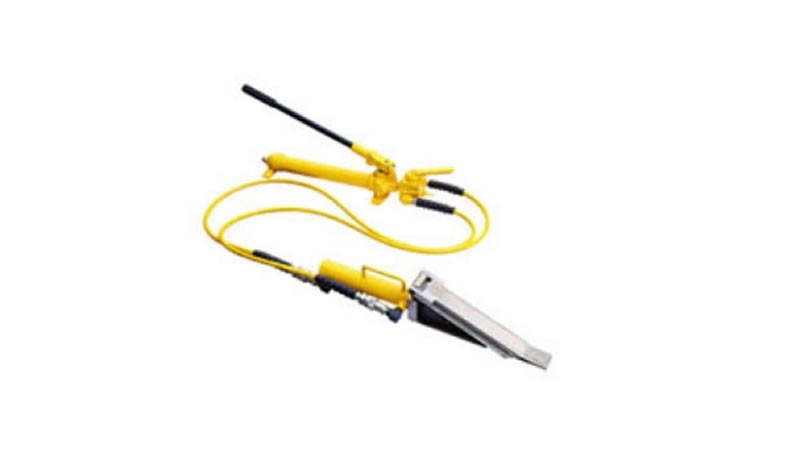

HFS系列管道法兰分离器
HFS Series Pipeline Flange Separator
产品特点:
Product characteristics:
利用管道法兰分离器，您无需再将时间和精力浪费在用铁锤和凿子的传统方法来分离管道法兰，为获得最大的分离力，最好使用成对的法兰分离器
With the pipe flange separator, you don't need to waste time and energy separating the pipe flange with the traditional method of hammer and chisel. In order to obtain the maximum separation force, it's better to use paired flange separators.
标准60度楔头适用于大部分的法兰，另有30度薄型和60度钝型可选
Standard 60 degree wedges are suitable for most flanges, with alternatives of 30 degree thin and 60 degree blunt.
HFS3A设计用于总厚度和最大分离量不大于3”的法兰，且其法兰螺栓直径不小于11/16”,在法兰总厚度和最大分离量不大于6”,且法兰螺栓直径不小于13/16”的法兰上可应用HFS6A。
HFS3A is designed for flanges with total thickness and maximum separation not greater than 3", and the diameter of flange bolts is not less than 11/16", and the total thickness and maximum separation amount of flange bolts are not greater than 6", and the diameter of flange bolts is not less than 13/16", HFS6A can be applied to flanges.
HFS系列管道法兰分离器选型表
|
Type Selection Table of HFS Series Pipeline Flange
Separator。 Model No |
油缸出力T Capacity |
标准楔头形式 Standard Wedge Type |
可选楔头 Optional wedges |
最小法兰开口 Minimum flange opening |
最大法兰开口 Maximum flange opening |
|||||
|
30° 薄型 |
60° 钝型 |
60°标准 |
60°钝型 |
30°
|
60°标准 |
60°钝型 |
30°
|
|||
|
HFS3A |
5 |
60°楔头 |
350823 350822 |
1.6 25.4 1.6 |
38.1 38.1 18.3 |
|||||
|
HFS6A |
10 |
60°楔头 |
350549 350550 |
1.6 38.1 1.6 |
50.8 50.8 24.6 |
|||||
