PTHP4290偶合器液压拉马 操作方法

PTHP4290偶合器液压拉马 操作方法

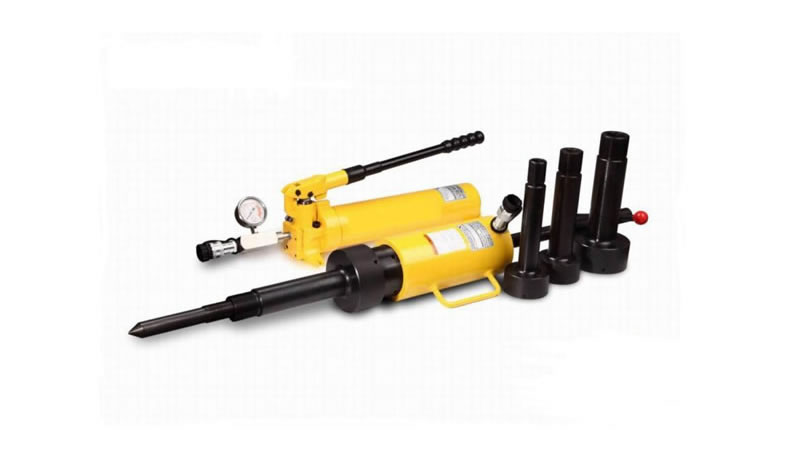

  • PTHP4290偶合器液压拉马

    PTHP Series Coupler Hydraulic Lama

    产品特点:

    Product characteristics:

    液压偶合器拉马是专为拆卸限矩型偶合器研制而成;

    The hydraulic coupling Rama is specially developed for the disassembly of moment limiting coupling.

    它具有安装快捷,操作简单,效果显著,一机多用等特点;

    It has the characteristics of quick installation, simple operation, remarkable effect and multi-purpose.

    广泛应用于电厂,煤矿,钢铁厂,码头等行业,是液压偶合器拆卸的最理想的工具;

    Widely used in power plants, coal mines, iron and steel plants, docks and other industries, is the ideal tool for hydraulic coupling disassembly;

    分离式液压设计,配合手动液压泵或者电动液压泵使用。

    Separate hydraulic design, with manual hydraulic pump or electric hydraulic pump.

    PTHP2075偶合器液压拉马技术参数:

    PTHP4290偶合器液压拉马选型表:

    Hydraulic Lama Selection Table for PTHP Series Couplers:

型号

Model

负载(T

load

行程(mm

Trip

油缸长度(mm

Cylinder length

油量(cm³)

Oil quantity

模具配置

Mold configuration

PTHP2075

20

75

304

450

M36*2

PTHP4290

42

90

373

530

M42M46M64
