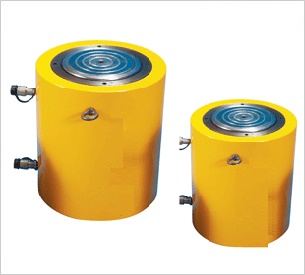

双作用大吨位液压油缸
双作用大吨位液压油缸
双作用，可进行推拉使用
出力大，重量轻
上缸溢流阀防止油缸压力过载
活塞和油缸内壁镀硬铬，防止刮伤和腐蚀
高温烤漆表面，耐磨防腐蚀及撞击
3/8" NPT母接头

双作用大吨位液压油缸具有输出力大，重量轻，可在任意空间位置下远距离操作的特点，配以本公司电动泵站，可实现：顶、推、拉、挤、压等多种形式的作业，广泛应用于交通，铁路，桥梁，造船，建筑，工矿等企业的设备顶升安装，调试，检修

型号承载能力（ton）工作行程（mm）本体高度（mm）油缸外径（mm）活塞杆外径（mm）底部安装孔顶帽外径（mm）工作压力（MPa）重量（Kg）

距离（mm）螺纹

SRDA-30T-180 30 180 330 106 55 70 M12 53 70 19.4

SRDA-50T-50 50 50 162 130 65 95 M12 50 14.9

SRDA-50T-100 100 212 95 18.5

SRDA-50T-100-2 100 215 110 18

SRDA-50T-150 150 262 95 22.8

SRDA-50T-200 200 312 95 26.5

SRDA-50T-250 250 362 95 30

SRDA-50T-300 300 415 95 55 34

SRDA-100T-30 100 30 100 175 95 / / / 17.9

SRDA-100T-30-2 30 120 165 70 18.6

SRDA-100T-50 50 120 175 / 19.9

SRDA-100T-50-2 50 143 165 95 M12 70 21.6

SRDA-100T-50-3 50 179 170 90 95 75 28.1

SRDA-100T-100 100 230 140 70 35

SRDA-100T-120 120 240 140 36.4

SRDA-100T-150 150 280 95 75 41

SRDA-100T-160 160 290 140 70 56.4

SRDA-100T-200-2 200 330 95 56

SRDA-100T-250 250 379 165 95 130 75 52

SRDA-100T-250-2 250 379 170 90 95 54

SRDA-100T-300 300 430 70 68

SRDA-100T-400 400 550 M20 78

SRDA-100T-450 150 635 190 95 160 M16 92 111.9

SRDA-100T-465 165 650 114.4

SRDA-150T-50 150 50 196 215 120 130 M12 94 45.2

SRDA-150T-60 60 200 220 140 100 57

SRDA-150T-100 100 246 215 130 94 55

SRDA-150T-100-2 100 240 215 140 100 54

SRDA-150T-150 150 296 215 140 100 68

SRDA-150T-150-2 150 296 205 130 94 65.5

SRDA-150T-160 160 306 215 140 100 73.5

SRDA-150T-200 200 346 78

SRDA-150T-250 250 396 92

SRDA-150T-300 300 446 105

SRDA-180T-60 180 60 208 235 130 150 M12 100 64.4

SRDA-200T-35 200 35 150 245 130 / / 96 48.9

SRDA-200T-50 50 212 165 M12 113 65.5

SRDA-200T-50-2 50 216 / / 110 74.1

SRDA-200T-60 60 175 / 57

SRDA-200T-60-2 60 200 / 66.2

SRDA-200T-80 80 200 / 63.2

SRDA-200T-110 110 240 110 74.4

SRDA-200T-130 130 290 110 90.6

SRDA-200T-150 150 312 165 M12 113 89.9

SRDA-200T-150-2 150 315 110 94

SRDA-200T-200 200 365 110 110

SRDA-200T-300 300 465 140 M16 110 144

SRDA-200T-400 400 590 175

SRDA-250T-16 250 16 140 285 160 / / / 66.9

SRDA-250T-50 50 235 240 M12 135 97

SRDA-250T-150 150 335 240 135 154

SRDA-250T-200 200 385 240 135 209

SRDA-250T-300 300 465 190 100 231

SRDA-250T-360 360 545 240 135 252

SRDA-320T-50 320 50 322 310 180 180 M16 150 180.4

SRDA-320T-150 150 422 229.1

SRDA-320T-200 200 472 256

SRDA-320T-200-2 200 385 204

SRDA-320T-250 250 485 237.3

SRDA-320T-300 300 572 303

SRDA-320T-300-2 300 535 281

SRDA-400T-50 400 50 375 365 210 205 M16 180 282

SRDA-400T-150 150 475 345

SRDA-400T-200 200 525 377

SRDA-400T-300 300 625 441

SRDA-500T-50 500 50 419 415 250 250 M24 210 429

SRDA-500T-150 150 519 515

SRDA-500T-200 200 569 558

SRDA-500T-200-2 200 472 454

SRDA-500T-300 300 669 645

SRDA-500T-300-2 300 572 541

SRDA-600T-50 600 50 429 445 260 275 M24 220 506

SRDA-600T-150 150 529 608

SRDA-600T-200 200 579 659

SRDA-600T-300 300 679 755

SRDA-800T-50 800 50 484 525 320 330 M24 260 797

SRDA-800T-150 150 584 936

SRDA-800T-200 200 634 1006

SRDA-800T-300 300 734 1142

SRDA-1000T-50 1000 50 564 580 350 375 M24 300 1140

SRDA-1000T-150 150 664 1305

SRDA-1000T-200 200 714 1388

SRDA-1000T-300 300 814 1552

SRDA-1000T-500 500 1000 390 M30 / 1860
